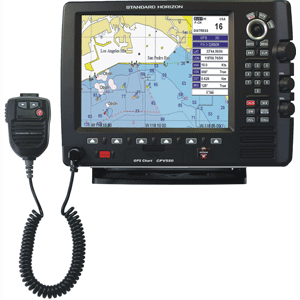

Standard Horizon CPV550 GPS Chartplotter w/VHF --- Discontinued ---
GENERAL INFORMATION
SKU:
29059
MFG #:
CPV550
Manufacturer:
Standard Horizon
Weight:
18.6
Discontinued:
08/29/12
ACCESSORIES
DESCRIPTION
QUICK SPECS
SKU
Description
List Price
STANDARD HORIZON BLACK BOX FF525 50/200KHZ 600/1000 WATTS
449.98


STANDARD VLH-3000 LOUD HAILER BLACK
449.98


MOUNTING BRACKETS
SKU
Description
List Price
STANDARD MMB-84 FLUSH MOUNT F/ QUANTUM QUEST-X MATRIX ECLIPSE
17.00


ANTENNAS
SKU
Description
List Price
STANDARD HORIZON GPS ANTENNA FOR CP190I 390I CPF190I 390I
162.50


CABLES
SKU
Description
List Price
STANDARD CT-100 23' EXTENSION FOR RAM+ CMP30 MIC & VH-310
27.00


STANDARD VIDEO ADAPTER CABLE
19.99


RELATED ITEMS
SKU
Description
List Price
STANDARD CVS2500A 4 CODE VOICE SCRAMBLER REPLACES CVS2500
133.00


SPEAKER MICS
SKU
Description
List Price
STANDARD VH-310 HANDSET
150.00


STANDARD HORIZON RAM3 SECOND STATION MIC BLK
129.99


STANDARD HORIZON RAM3 SECOND STATION MIC WHT
129.99


SPEAKERS
SKU
Description
List Price
STANDARD 220SW 4.5 ROUND HAILER PA HORN
40.00


STANDARD HORIZON 240SW HAILER PA HORN 5 X 7
45.00


STANDARD 10 WATT AMPLIFIED WHITE EXTENSION SPEAKER
69.99


STANDARD 10 WATT AMPLIFIED BLACK EXTENSION SPEAKER
69.99


STANDARD WHITE VHF EXTENSION SPEAKER
49.99


STANDARD BLACK VHF EXTENSION SPEAKER
49.99


TRANSOM MOUNT TRANSDUCER
SKU
Description
List Price
STANDARD DST521 TRANSOM MOUNT TRANSDUCER D/S/T F/ BBFF FF520
139.99


THRU-HULL TRANSDUCER
SKU
Description
List Price
STANDARD DST526 BRONZE TRIDUCE WITH FAIRING BLOCK
329.99


STANDARD 2" BRONZE THRU HULL DEPTH/TEMP TRANSDUCER
229.99


IN-HULL TRANSDUCER
SKU
Description
List Price
STANDARD DST525 IN-HULL DEPTH
119.99


CPV550

Takes a single station system to a whole new level:
  • Huge! 12" Direct Sunlight Viewable
  • Commercial grade Class D VHF
  • 30W PA, FOG signaling and listen back
  • C-Map NT or MAX cartography capable
  • 2 video inputs for connection of optional camera or DVD player.
  • 50/200kHz Fish Finder module optional
  • Dual RAM+ mic connections


  • Radar Capable
  • The CPV550 is compatable with Sitex radar models: MDS-1, MDS-8, MDS-9, MDS-10-4, MDS-10-5

  • Alphanumeric Key Pad
  • The keypad allows quick access to most often used functions, input of DSC names and position and direct entry of channels.

  • Commercial ITU Class D VHF
  • The CPV550 meets the international requirements for Class D with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency and Safety.

  • 80dB Rejection
  • Advanced receiver technology rejects the reception of unwanted signals from pagers and other unwanted VHF frequencies.

  • Audio Tone Control
  • This unique feature allows the treble and bass of the speaker audio to be adjusted for best listening. The effect is similar to adjusting the treble and bass controls on a stereo.

  • Oversized Knobs and Scanning
  • Radio operation and channel selection is made easy (even with gloves) with the oversized volume, squelch and channel selector knobs. The CPV550 has Dual Watch, which scans a selected channel and ch16 simultaneously allowing you to monitor a channel and not miss calls made on ch16. Programmable Scan and Priority Scan features are user programmable.

  • Plug and Play Front or Rear Panel Mic
  • The standard hand microphone has a built in speaker and uses Noise canceling technology called ClearVoice for unsurpassed communications even in the noisiest environments. This microphone also has the capability to directly switch between channels 16 and 9, change channels with the large UP/Down keys and can be removed for storage. The microphone may be remoted with the MEK-4 extension kit for custom installations. The MEK-4 contains 20Ft or routing cable, Stainless Steel panel mount and screws.

  • 2 Remote Stations
  • All of the features of the main radio can be accessed through the optional RAM+ speaker microphone (CMP25) or VH-310 telephone style handset (2 connections) With a RAM+ or VH-310 connected, the CPV550 becomes an intercom system allowing two way private communications.

  • 2 Video (NTSC or PAL) Input Connections
  • The CPV550 has 2 connection that allows a video signal from a optional camera or DVD to be connected and shown on the whole display, or a Picture in Picture window.

  • 30w PA and Fog Signaling
  • The CPV550 includes a 30W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel is can be heard when in the PA or Fog mode.

  • FT 256 Color 12-Inch Display (Screen Resolution: 800 x 600)
  • There is no question about it. With a big, bold display there is no mistaking the information. It can easily be seen in locations where the Chart Plotter cannot be mounted directly in front of you.

  • 3000/Routes: 50 (Max 50 waypoints each)
  • Beauty and brains! Not only does the CPV550 boast a beautiful display, it can also be loaded with enough Waypoints and Marks to guarantee you will always arrive at you destination.

  • FishFinder, Radar options
  • The CP500 is capable being a fish finder and a Radar by connecting the FF520 sounder module and optional 2K and 4K Radar Antennas.

  • AIS Targets
  • Large vessels routinely transmit their navigation information. The CPV550 is capable of displaying these signals (when optional AIS receiver connected) as Targets on the chart page in relation to your position. In addition the CPV550 can be setup to alarm when a target ship is within a specific time or range zone, to alert you to avoid a collision.

  • Additional Features
  • NorthUp and CourseUp display setting Supports Loran TD's Dedicated GOTO, MARK and ROUTE keys Split Screen Fish Finder and Radar when optional FF520 or 2K or 4K Antennas connected Supplied with Mounting Bracket and Hardware, Flushmount hardware and 16ch WAAS GPS antenna with 30Ft of cable

3-Year Waterproof Warranty
  • If the CPV550 fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.


  • GPS Chartplotter Features:
  • 12" full VGA 800 x 600 high resolution sunlight viewable display
  • 50 Channel WAAS GPS antenna included
  • 6 programmable soft keys
  • Connections for 2 optional RAM+, RAM3 or VH-310 remote microphones
  • C-MAP NT+ and C-MAP MAX compatible
    VHF and PA features:
  • Commercial Grade Class D DSC
  • 25 Watt transmit power
  • 30 Watt PA, FOG, Bells and Whistles with listen back
  • Basemap
    Yes
    Card Format
    C-Card
    Cartography - Preloaded
    No
    Cartography Brand
    C-Map
    Cartography Type
    MAX
    Internal/External Antenna
    External
    Resolution (VxH)
    800 x 600
    Screen Size
    12.0"
    Touchscreen
    No
    Screen Type
    Color
    Weather Capable
    No
    Waypoints/Routes
    3000/50
    Box Dimensions
    14"H x 15"W x 18"L    WT: 18.60lbs
    Warranty
    3 Years
    UPC
    788026107308
    Owners Manual
    View (pdf)
