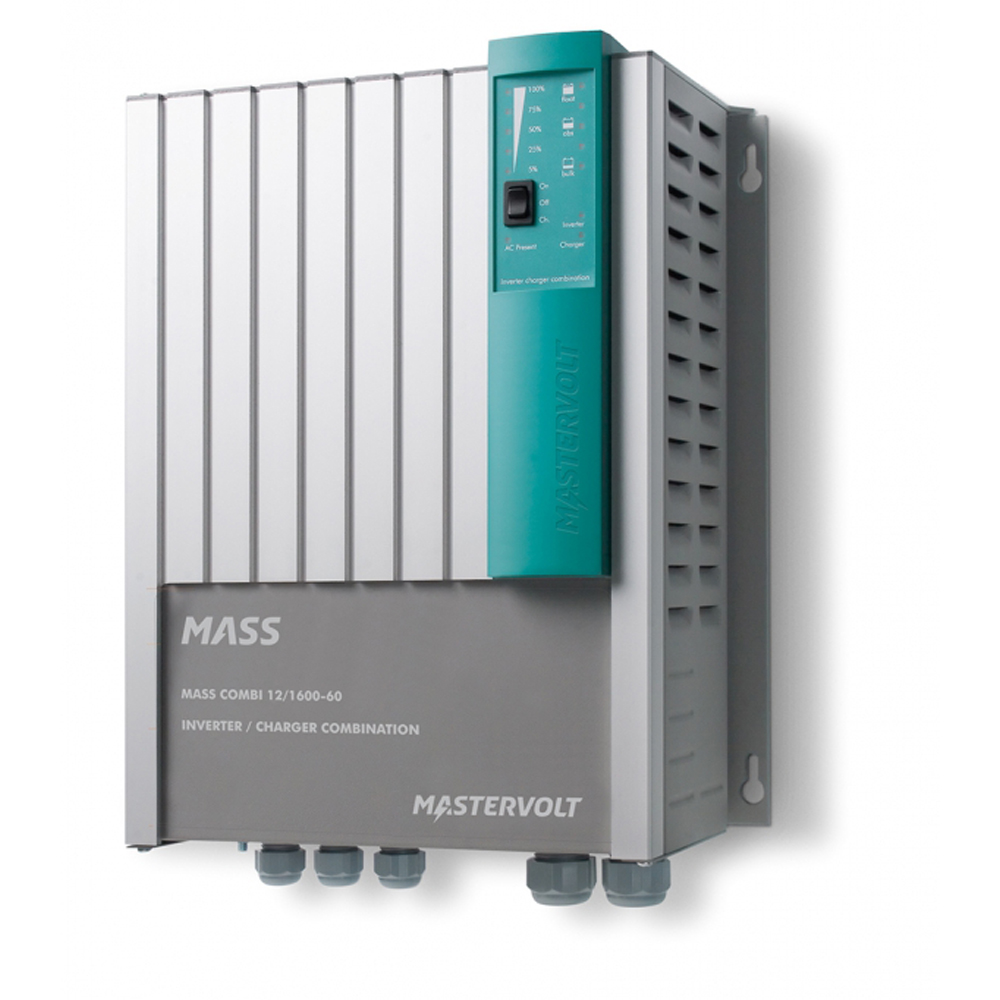

Mastervolt Mass Combi 12/1600-60 (12V/230V)

Mastervolt Mass Combi 12/1600-60 (12V/230V)
Mass Combi 12/1600-60 (12V/230V)

Continuous power and peace of mind in all conditions

The renewed Mass Combi offers the best price/quality ratio. Based on the exceptionally reliable Mass Combiseries, the four new models now offer even more power at a highly competitive price. In addition, they arealso available in two customer-friendly variations with remote control or MasterBus.

The powerful 3-step+ battery charger guarantees maximum battery life and can simultaneously charge twobattery banks. The inverter with high peak power starts even the heaviest loads, with the Mass Combi12/1600 being easily sufficient for your espresso machine. A built-in distribution system switches betweengrid and inverter power, while two separate AC outputs allow users to connect critical loads to a preferredgroup.

Grid connected solar power system with energy storage
The Mass Combi enables the expansion of a grid connected solar power system with energy storage inbatteries. This way the majority of the generated energy is used, and users are less dependent on theelectricity grid. In this setup, the Mass Combi is part of a MasterBus controlled system.

The benefits of the improved Mass Combi:
  • Compact, lightweight and no hum thanks to HF technology
  • High yield and more power from your batteries
  • Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life
  • Charges two individual battery banks simultaneously
  • Quiet, powerful inverter with 200 % peak power
  • Power Assist: extra power assistance from the batteries in case of limited grid or generator power(prevents blown fuses)
  • Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters
  • Dual AC outputs to separate critical equipment from heavy loads
  • Professional connections ensure fast installation and operational security
  • CE approved and E-marking for mobile applications


Specifications

Specifications Sine Wave Inverter
  • Nomimal DC voltage: 12 V (10-15 V)
  • Output voltage: 230 V (± 5 %), adjustable 180-250 V
  • Output frequency: 50/60 Hz (± 0.05 %), configurable
  • Output waveform: true sine, Thd < 2.5 % under standard conditions
  • Continuous power at 25°C / 77°F, cos phi 1: 1600 W
  • Max. peak load: 3000 W
  • Max. efficiency: >= 90 %
  • Max. ripple on DC (battery at full load): < 5 %
  • No-load power consumption on DC (ON/inverterOFF/OFF/energy saving): 9 W / 0.1 W / 0 W / 0.5 W
  • Parallel configuration: no
  • 3-Phase configuration: no
  • Synchronize with mains/generator: yes


Specifications Battery Charger
  • Input voltage range: 180-265 V
  • Max. input current: 4.5 A
  • Max. charge current at 25°C / 77°F: 60 A at 14.25 V, adjustable
  • Secondary charger output voltage: 12 V
  • Secondary charger output current: 5 A
  • No-load consumption on AC: < 15 W
  • Battery temperature sensor: yes, included
  • Battery voltage sense: automatic compensation


Specifications Transfer System
  • AC input 1: 50 A (25 A switched, to short break output)
  • AC output 1: 25 A (short break output)
  • AC output 2: 50 A (power output)
  • AC input fuse: yes, resettable
  • Transfer speed: half seamless (25 ms max., 10 ms typical)
  • Transfer voltage range: 180-265 V
  • Transfer frequency range: 45-65 Hz

General Specifications
  • Display/read-out: LED display
  • Dimensions, HxWxD: 14.6 x 12.5 x 5.6 inch
  • Weight: 17.2 lb
  • Approvals: CE, ABYC, E4


Technical Specifications
  • Charge characteristic: 3-step+ (IUoUo, fully automatic), Equalize
  • Battery types: AGM/gel/MLI/flooded/spiral/traction
  • Recommended battery capacity: 120-360 Ah (based on gel batteries, may differ for othertypes)
  • Ground relay: yes, configurable
  • Temperature range (ambient temp.): -25°C to 60°C, derating > 25°C-13 to 140°F
  • Protection degree: IP23 (vertical mounting)
  • Safety class: IEC protection class I
  • Humidity protection: conformal coating, max. 95 % relative humidity, non condensing
  • Protections: over temperature, overload, short circuit, high/low battery voltage
  • Cooling: maintenance-free vario fans
  • Power Assist: yes
  • MasterBus compatible: yes, in combination with a MasterBus Combi Interface
